Automatic Marking and Punching Devices

Type SC 390 Hot Marking Device - Type SC 396 Cold Marking Device
Type SC 380 Hot Punching Device - Type SC 386 Cold Punching Device

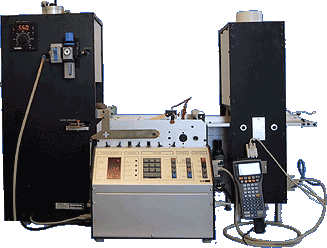

The above four products are devices which can be fitted to any SUHR cutting machine which is microprocessor controlled (indicated by the suffix U' on the Type number). Like the cutting machines they are designed and manufactured in Denmark.

These devices can be fitted in front of a strip cutting machine when it is required to place marks or punch holes in some accurate relationship to the cut edge. There are four variants available:

Hot Marker: used to mark materials via a heated bar or shape.

Cold Marker: marks the material with a coloured ink.

Hot Punch: punches and seals holes in synthetic materials.

Cold Punch: produces holes in natural materials and non-fraying plastics etc.

The location of the marks is controlled by a small hand-held data module which can programme up to 18 different distances between adjacent marks or holes and can store hundreds of different combinations in its memory for instant recall by part number or name. This makes the device particularly useful for placing sewing marks on straps before cutting them into length or punching a series of holes in belts etc. Each device weighs about 20Kg (without the cutting machine). They are designed for bench mounting in front of a SUHR cutting machine, and require a 230V/50Hz mains, and a supply of clean, dry compressed air.
